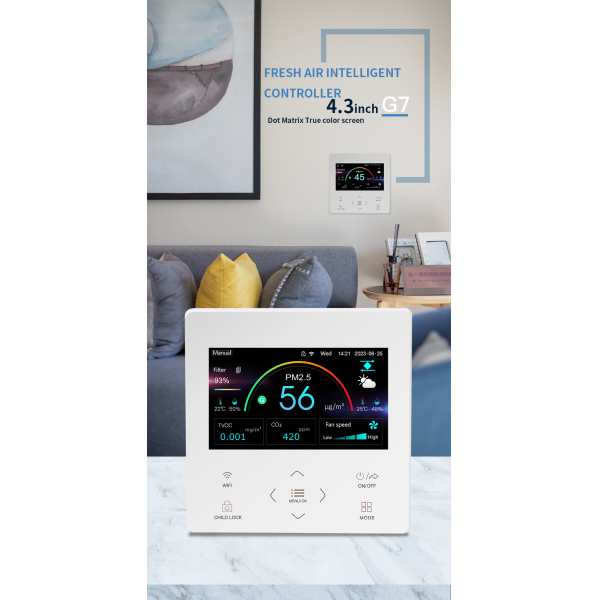

This Smart Fresh Air Ventilation Controller G7 is an advanced indoor air quality management panel designed for modern HVAC, HRV, and ERV ventilation systems. It features a 4.3-inch full-color display that provides real-time monitoring of key air parameters, including PM2.5, CO₂, TVOC, temperature, and humidity, allowing users to clearly understand and manage indoor air conditions at a glance.
The controller supports intelligent ventilation control with automatic fan speed adjustment based on air quality levels, ensuring a healthier and more comfortable indoor environment while improving energy efficiency. It also displays system status such as filter life reminder, weather information, and operation mode, helping users maintain the system more effectively.
Main Features:
Remote App Control
Control and monitor the ventilation system anytime through Smart Life or Tuya Smart App.
RS485 Integration
Supports integration with BMS, HVAC, and smart building management systems.
Flexible OEM/ODM Customization
Customized UI design, startup logo, enclosure color, and functional development available.
Wide System Compatibility
Suitable for Fresh Air Ventilation Systems, HRV (Heat Recovery Ventilation), and ERV (Energy Recovery Ventilation) applications.
|
* Dimension:
|
120 × 120 × 53 mm
|
|
* Warm-up time:
|
1 minute
|
|
* Fixing hole distance:
|
60mm (standard)
|
|
* Response time:
|
≤ 10 seconds
|
|
* Wiring terminal:
|
Max 2.5 mm2 wire
|
|
* Recovery time:
|
≤ 30 seconds
|
|
* Rated voltage:
|
-10℃--- +50℃
|
|
* Standby Power:
|
≤ 3.0W
|
|
* Operating humidity:
|
5％RH——90％RH
|
|
* Control power:
|
≤ 200W
|
|
* Storage temperature:
|
-10℃--- +60℃
|
|
* Suitable for fans:
|
AC/EC/DC
|
|
* PM2.5 display range:
|
0ug/m3——999ug/M3
|
|
* Temperature display range:
|
0℃ —— 99℃
|
|
* C02 display range:
|
0ppm——9999ppm
|
|
* Humidity display range:
|
0%—99%
|
